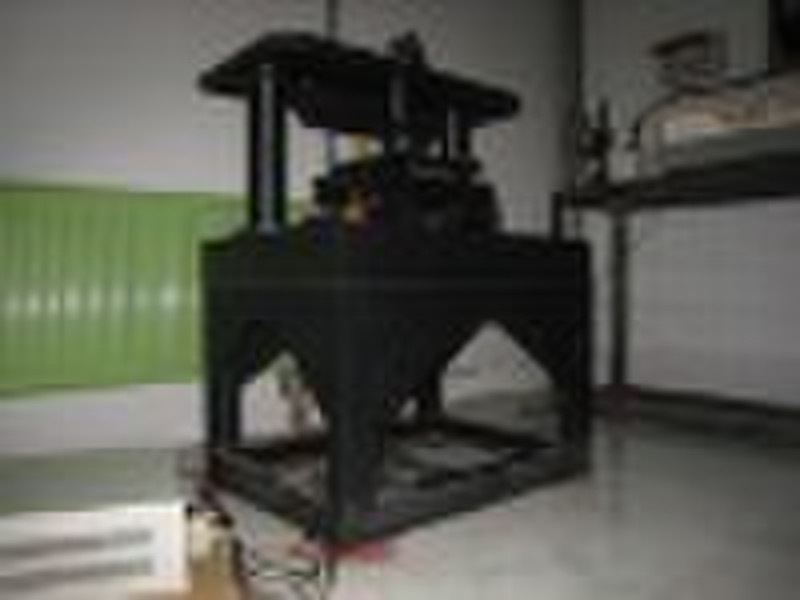

Automatic hologram Dot Matrix Master Machine CZ-GK

Hologram(holographic) Dot Matrix Master Machine, for making dynamic dot matrix holographic image, the Machines parts such as the steel wire, track , shaft coupling imported from Germany. So, the machine has very high precision and effect. The modularize electric-control unit is quite stable, high reliability .The machine has a simple interface and powerful functions, which have own protection and intendance process ,The movement of each motor can be adjusted and controlled independently so as to exert heighten function itself . It can forecast the dynamic graphs image of function. The format of picture is 8 bits BMP and all-purpose for windows. The source of picture is abundant and kinds of drawing software can be made using in machine.Hologram Dot-matrix hologram master machine composed of, programmable controller, accurate platform, Optics Bridge, computer and software. This machine is intelligent engraving system. After you load engraving data in it'll work automatically until finish the job.Over size(mainframe) 800mm×600mm×1100mm Rated power 700W The highest rate of the distinguish 50dots/mm(2540dip) the working speed 15dots/Sec HE-Cd Laster machine'spower ≤10MW(4416A,508dpi) the operating system Win98 SE Control graph8bits,BMP ashen step graph
